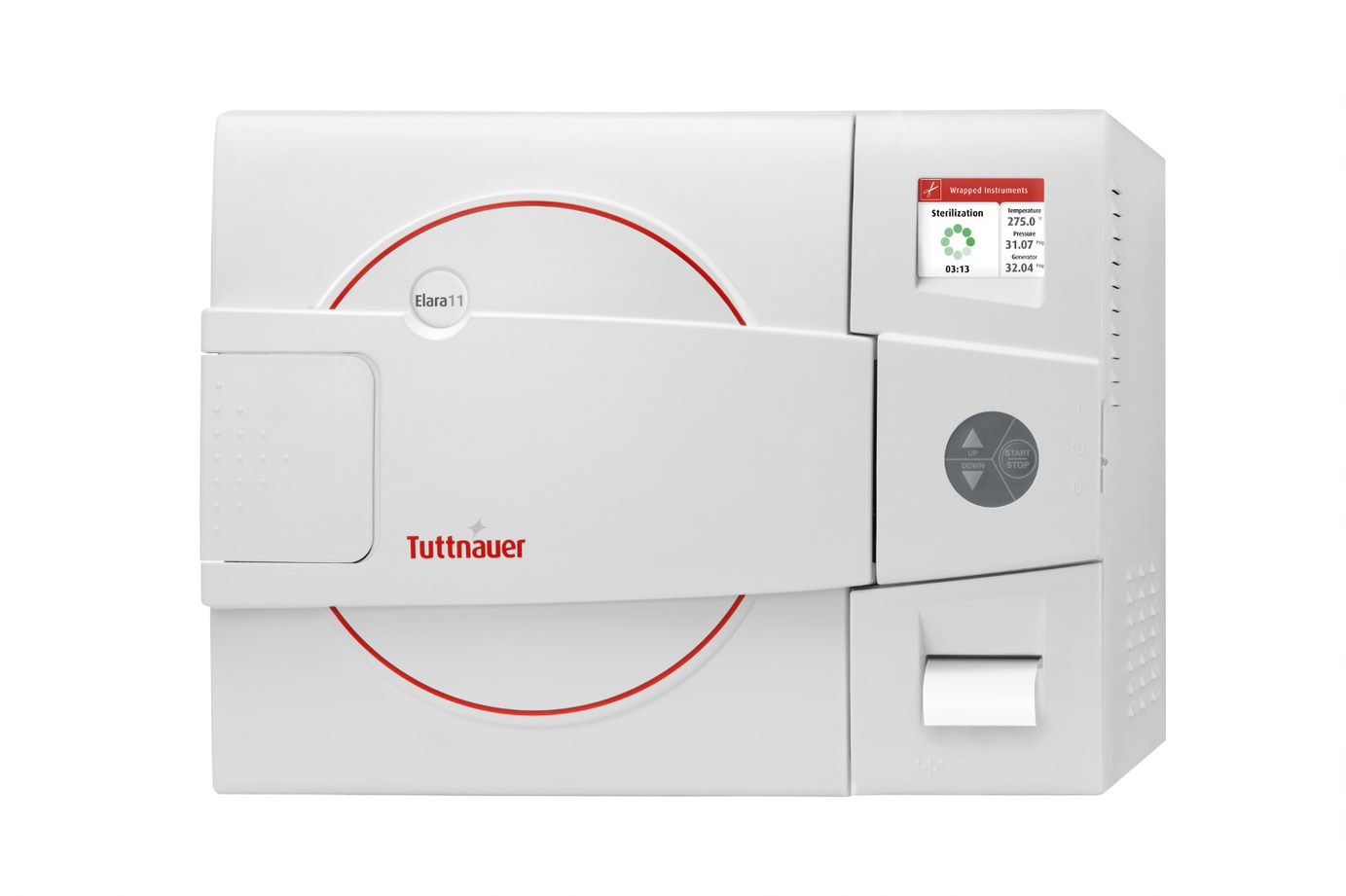

ELARA 11 Pre/Post - Vacuum Class B Sterilizer w/Printer (automatic)

ELARA 11 Pre/Post - Vacuum Class B Sterilizer w/Printer (automatic)

Overview: The Elara11 top-of-the-line tabletop autoclave is a robust Class B sterilizer for dental, medical and veterinary clinics requiring pre post vacuum sterilization. A built-in vacuum pump used for fractionated pre vacuum air removal eliminates air pockets from all load types and maximizes efficient steam penetration. After sterilization is complete, the vacuum pump delivers efficient post-vacuum drying.
Filling & Reservoirs
Easy Fill for front or top access, and rear waste reservoir for continuous automatic wastewater drainage
3 Key Pad
Quick 3-key browsing through sterilization programs and directories
Self-locking door
Ergonomically friendly door features effortless opening and closing. Automatic double safety locking mechanism ensures door is closed through dry cycle to maintain sterility
Multi-color LCD display
Keep track of real-time data like program icon, cycle parameters, temperature and chamber pressure. Multi-language and easy to read even from a distance
Printer and USB Support
Print detailed history of each cycle and store and transfer ~ 100 cycles of data
Network Port
Convenient connectivity local networks for data sharing and remote monitoring using RPCR Software

Reorder #: 604570

Manufacturer #: Elara 11




Details:

Technical specifications
The Elara11 is loaded with uncompromising safety features and rich technical specifications to support durable, robust operation and efficiency.
Overall Dimensions (DxWxH)*
26” x 20.9” x 17.3”
660mm x 530mm x 440mm
Chamber Dimensions
11” x 19.8”
280mm x 504mm
Chamber Volume
28.5 Liter
7.5 Gallon
Tray Capacity
5 Trays
Tray Dimensions
16,3” x 6,7" x 0.6”,
442mm x 177mm x 19mm
Standard Cassette Capacity
4 Full & 4 Half**
(loaded vertically)
Voltage & Frequency***
230V
50-60Hz
Power & Current
2300W
10A
Shipping Weight
186 Lbs
84 kg
Warranty
2 years parts and labor
NOTES
* Minimum tabletop depth of 24”
** Standard full size cassette is 8”x11” and standard half size cassette is 8”x5.5”
*** Requires a voltage between 220V and 235V for proper operation. Voltage outside this area will require a buck/boost transformer (0.5kVA)
